SPECS SHEET

Madeleine Dupont, dimadupont@vtr.net is selling her Bonanza.
cell phone: +56992320704 / home:+5628133723

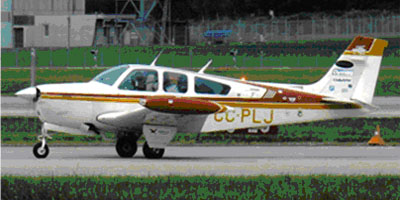

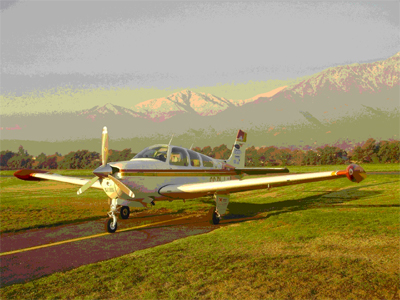

Beech Bonanza F33A
CC-PLJ based in Santiago/Chile Year: 1981 Serial number: CE-958

• IFR certified
• NDH
• Engine: 750H SNEW - Continental IO-520 BB58BN 285HP with GAMIjectors
• TBO:1.700 H (serial number 580185)
  (oil consumption approx. 1Qt. for 15 to 18 hours)
• Airplane: 4759H
• Prop: 806H Three Blade Constant Speed Hartzell PHC-C3YF-1RF
  (serial n EE1120)
• Complete logs since 1981 and all inspections complied
• Cleveland heavy brakes
• • New Platinum Spark Plugs (Oct.2008)
• Osborne Tip Tanks (capacity: 20 US gallons each) (total endurance: 08:30)
  (STC with 200 lbs gross weight increase, max. take off weight:3.600lbs)
• PTT pilot and copilot
• Turbo Alternator providing backup power (BAE - 12amp/28v (STC) vdc output at 150 IAS)
• Shadin Fuel Computer
• Stormscope Strikefinder "Insight" SF-2000
• NORTHSTAR M 3 APPROACH GPS
• BENDIX/KING KFC 200 flight control system with two axis
• Autopilot – HSI - Flight Director
• Sist. Comp. KING KCS-55A
• Dual Com/Nav COLLINS Microline (VHF-251)
• Audio Sist. COLLINS AMR-350
• ADF-650 A COLLINS
• VOR VIR-351 COLLINS
• Glide Slope GLS-350 COLLINS
• Indicator VOR/LOC IDN-350 COLLINS
• Indicator HSI KI-525A KING
• Marker Beacon AMR-350 COLLINS
• Transponder TDR-950 COLLINS
• Autom. Sist. Repor. Pressure Altitude TCI D120-P2-T
• Two vacuum pumps
• Always hangared
• Dual Yoke
• Fifth seat
• Large Baggage Door
• Kennon Super Sun shields with sunbrella edging
• Intercom, 4 seats

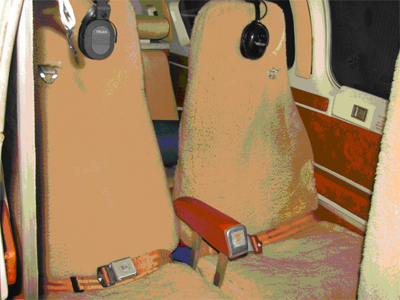

• Sheepskin seatcovers
• Map light

ASKING: US$ 163.000.00 / MAKE AN OFFER!!
PRECIO:163.000.-US$ / ACEPTO OFERTAS razonables

Madeleine Dupont, dimadupont@vtr.net
